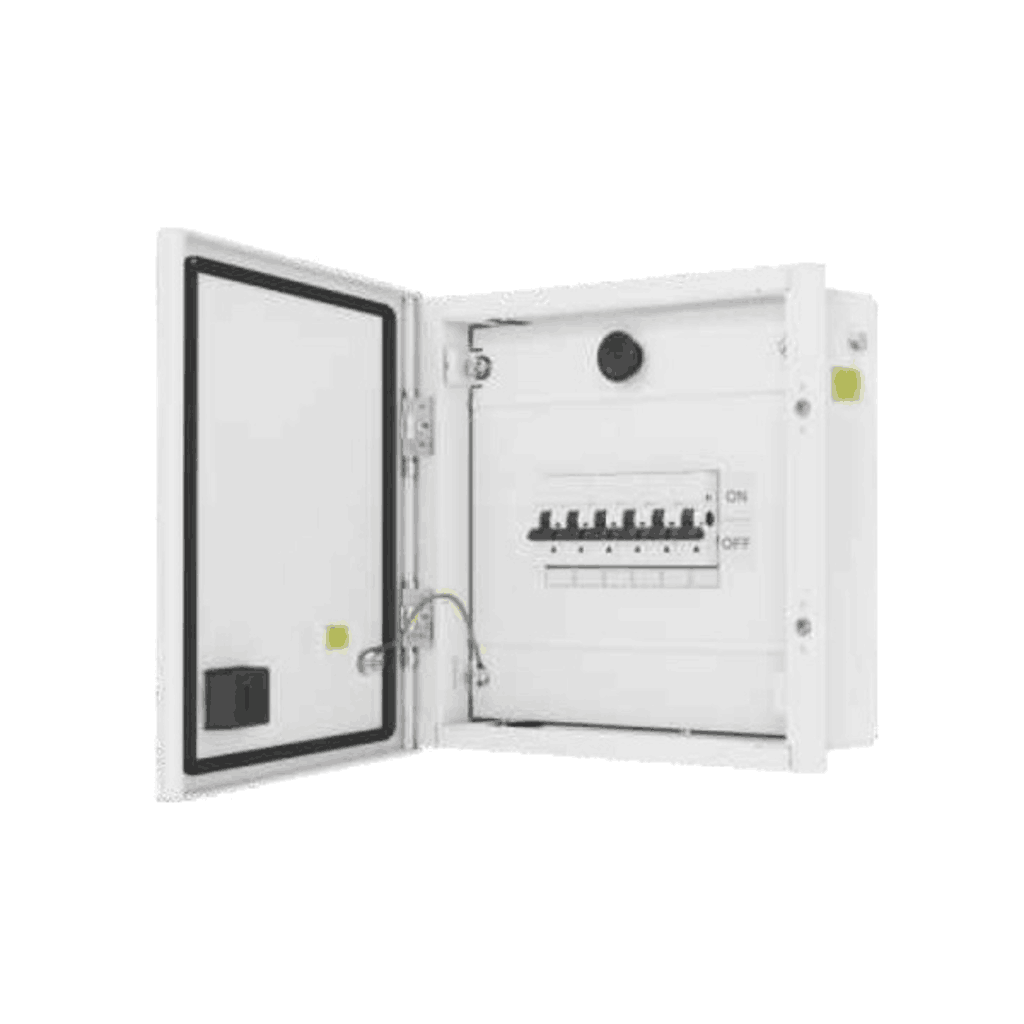

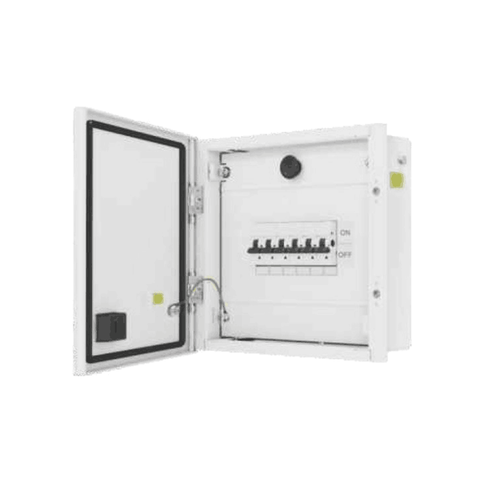

L&T SPN Distribution Boards Glazed Door
L&T SPN Distribution Boards Glazed Door
Couldn't load pickup availability
Product Description
-
Conforms to IS 8623-1 & 3, IEC 61439-1 & 3
-
IK 08-For Single door DBs, IK 09-for double door DBs
-
Available in CRCA sheet steel, RAL9003, power coated
-
Ready to use DBs - Provided with 100A insulated phase but-bar netural bar/s with shroud/s earth bar/s sticking saddles cement spill protector! colour-coded interconnecting wire set! cable ties! blanking plates and circuit identification label
-
With provision for DP MCB/Isolater/RCCB/RCBO as incommer and SP MCBs as outgoings
-
IP 43 – Glazed Door
Product Specification
|
No of Way |
Modules |
Model No |
|
|
Incomer |
Outgoing |
||
|
4 Way |
2 |
2 |
DBSPN004GD |
|
6 Way |
2 |
4 |
DBSPN006GD |
|
8 Way |
2 |
6 |
DBSPN008GD |
|
12 Way |
2 |
10 |
DBSPN012GD |
|
16 Way |
2 |
14 |
DBSPN016GD |
|
18 Way |
2 |
16 |
DBSPN018GD |
