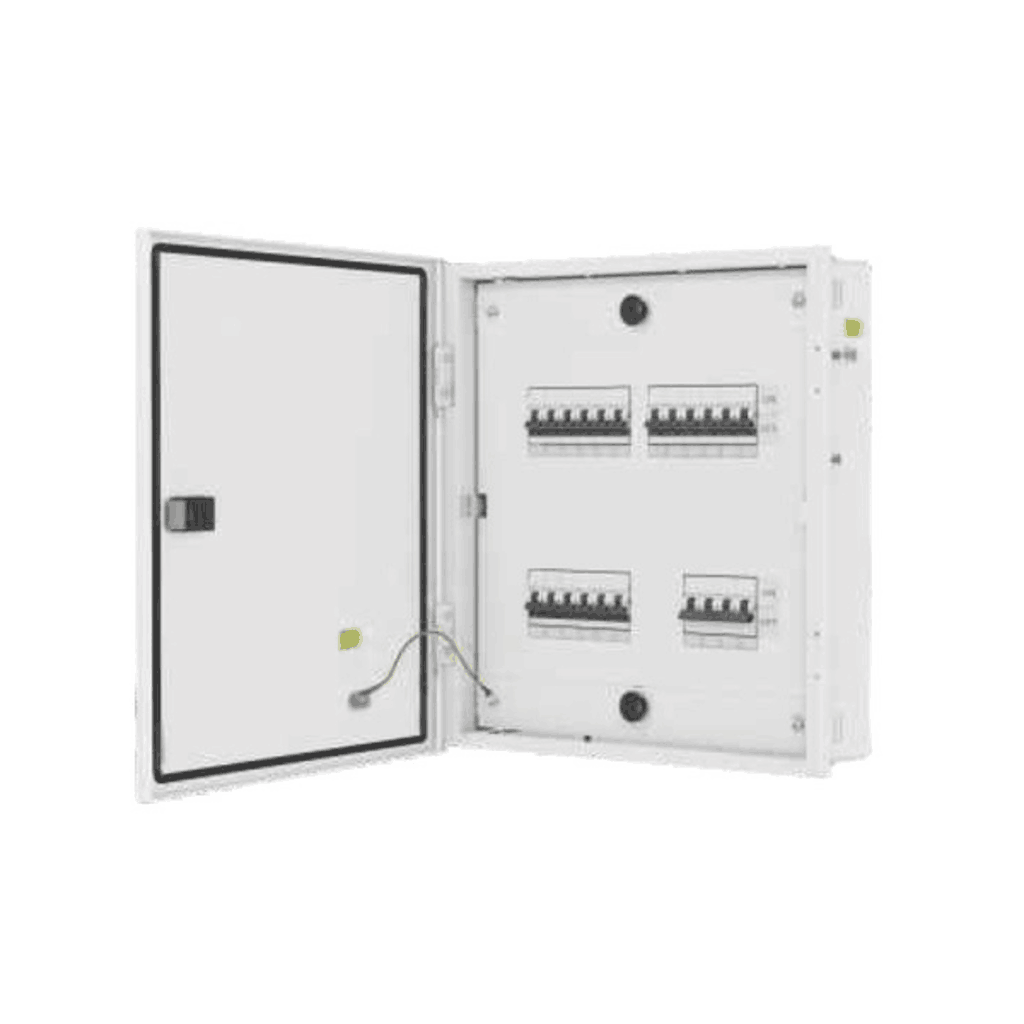

L&T TPN Distribution Boards Metal Door
L&T TPN Distribution Boards Metal Door
Couldn't load pickup availability
Product Description
-
Conforms to IS 8623-1 & 3, IEC 61439-1 & 3
-
IK 09-for double door DBs
-
Available in CRCA sheet steel, RAL9003, power coated
-
Ready to use DBs - Provided with 100A insulated phase but-bar netural bar/s with shroud/s earth bar/s sticking saddles cement spill protector! colour-coded interconnecting wire set! cable ties! blanking plates and circuit identification label
-
With provision for DP MCB/Isolater/RCCB/RCBO as incommer and SP MCBs as outgoings
-
IP 43 Metal door
Product Specification
|
No of Way |
Modules |
Model No |
||
|
Incomer |
Sub Incomer |
Outgoing |
||
|
4 Way |
8 |
2+2 |
4+4+4 |
DBHPI004DD |
|
6 Way |
8 |
2+2 |
6+6+6 |
DBHPI006DD |
|
8 Way |
8 |
2+2 |
8+8+8 |
DBHPI008DD |
|
12 Way |
8 |
2+2 |
12+12+12 |
DBHPI012DD |
|
16 Way |
8 |
2+2 |
16+16+16 |
DBHPI016DD |
