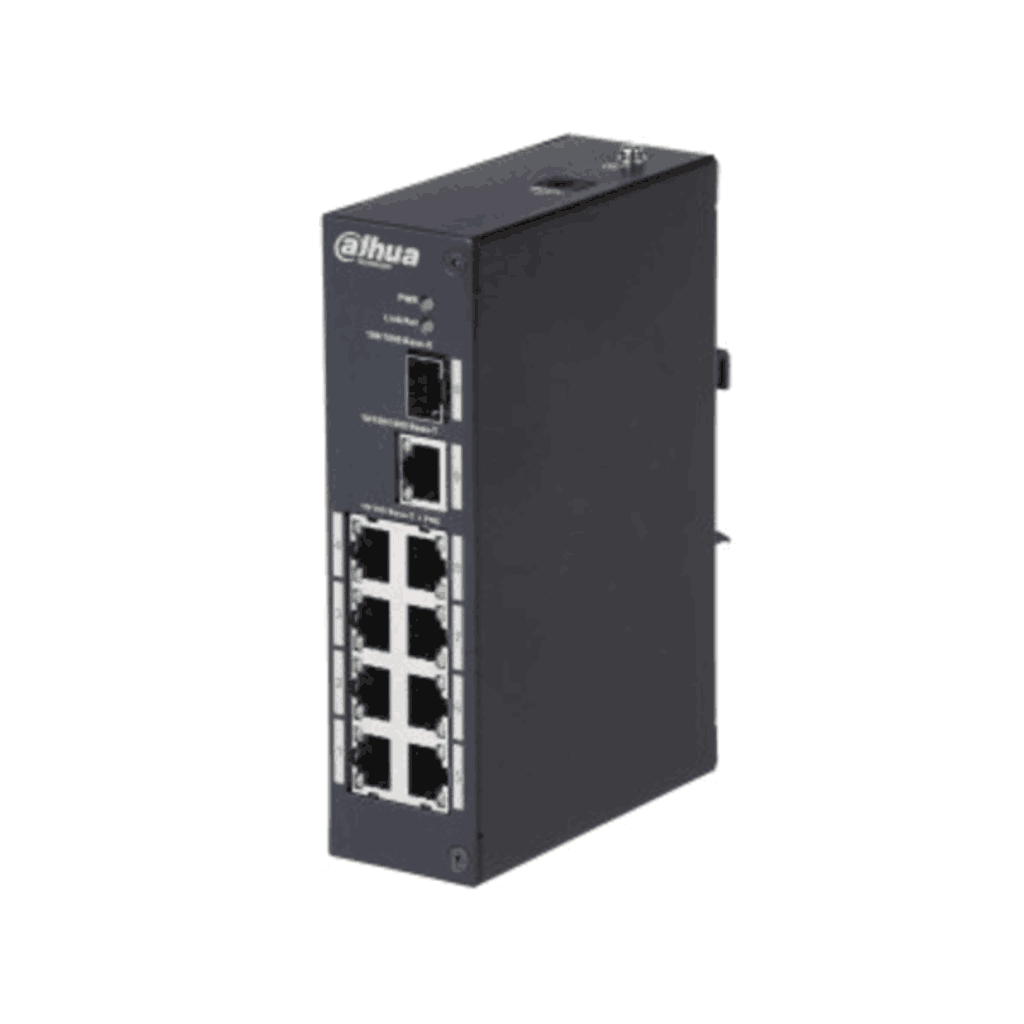

Dahua 8-Port PoE Switch PFS3110-8P-96
Dahua 8-Port PoE Switch PFS3110-8P-96
Couldn't load pickup availability
Product Description
-
Two-layer industrial PoE switch
-
MAC auto study and aging, MAC address list capacity is 8K
-
Support IEEE802.3af, IEEE802.3at standard
-
Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
-
Industrial wide temperature design
Product Specification
|
Brand |
Dahua |
|
Product Type |
PoE Switch |
|
Model |
PFL2106-4ET-96 |
|
Ethernet Port |
1*1000 Base-X ,1*10/100/1000 Base-T ,8*10/100 Base-T (PoE power supply) |
|
PoE Power Consumption |
Each power ≤30W, Total≤96W |
|
PoE Protocol |
IEEE802.3af, IEEE802.3at |
|
Switching Capacity |
7.6G |
|
Packet Forwarding Rate |
4.17Mpps |
|
Packet Buffer Memory |
1Mb |
|
MAC Table Size |
8K |
|
Application Humidity |
10%~90% |
|
Power |
DC48~57V power adapter |
|
Lightning Protection |
Common Mode 4KV ,Differential Mode 2KV |
|
Working Temperature |
﹣30°C~65°C |
|
Weight |
540g |
|
Dimension(W×D×H) |
150mm×100mm×42mm |
