• Dahua 4-port PoE Switch PFS3005-4P-58
1 1

Dahua

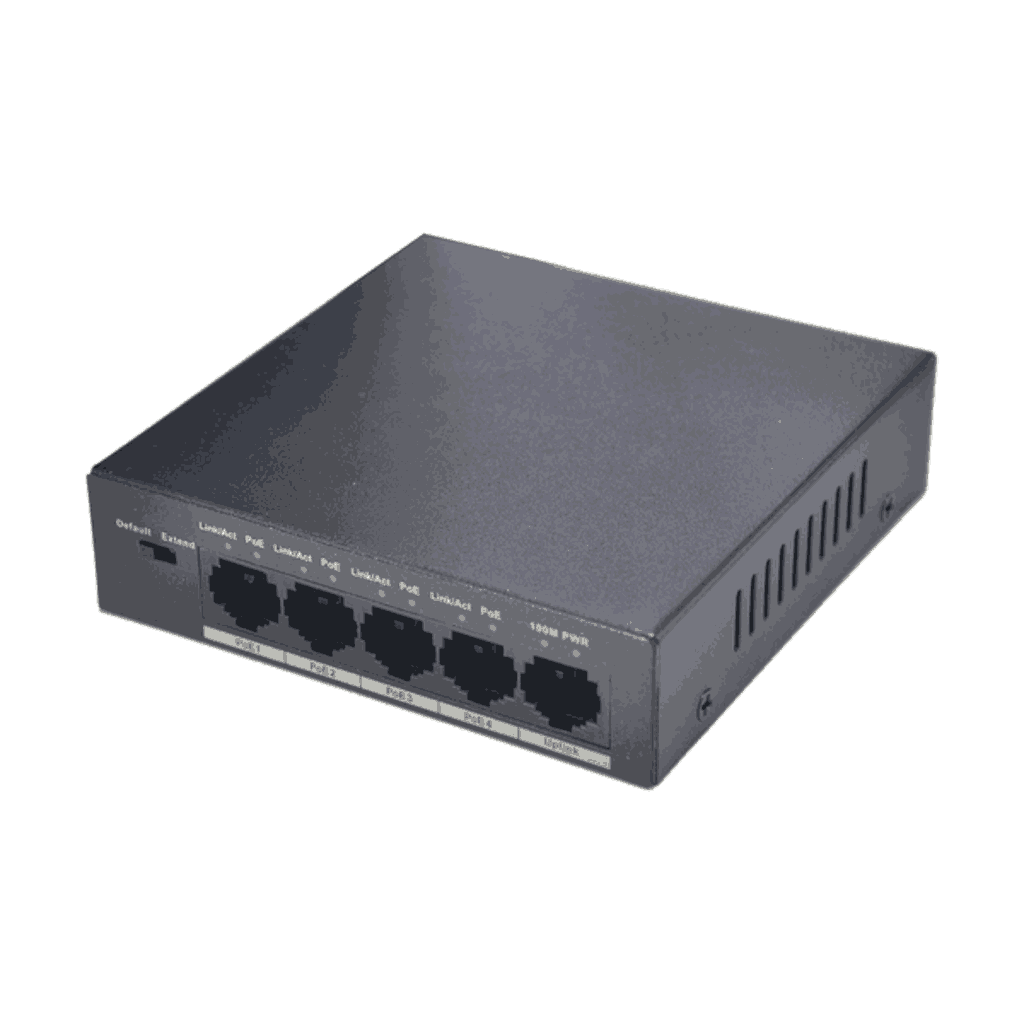

Dahua 4-port PoE Switch PFS3005-4P-58

Dahua 4-port PoE Switch PFS3005-4P-58

Rs. 2,700.00
Rs. 3,750.00 Rs. 2,700.00
Sale Sold out
Taxes included.

Product Description

  • Two-layer PoE Ethernet switch

  • MAC auto study and aging, MAC address list capacity is 1K Support IEEE802.3af, IEEE802.3at standard

  • Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards

  • Default Mode: The device works as a general switch and all ports support 10/100Mbps auto-negotiation

  • Extend Mode: VLAN isolation is enabled. Ports 1-4 will be isolated respectively (10Mbps auto-negotiation), but they can communicate with the Uplink port. Besides, the transmission distance of power and network data is up to 250m

Product Specification

Brand

Dahua

Product Type

PoE Switch

Model

PFS3005-4P-58

Ethernet Port

1*10/100 Base-T,4*10/100 Base-T (PoE power supply)

PoE Power Consumption

Each power ≤30W, Total≤58W

PoE Protocol

IEEE802.3af, IEEE802.3at

Switching Capacity

1Gbps

Packet Forwarding Rate

744Kpps

Packet Buffer Memory

448Kb

MAC Table Size

1K

Flow Control

Enable

Application Humidity

10%~90%

Power

Default DC51V/1.25A power adapter

Lightning Protection

Common Mode 2KV,Differential Mode 1KV

Working Temperature

-10°C~50°C

Weight

259g

Dimension(W×D×H)

100mm×100mm×26mm
