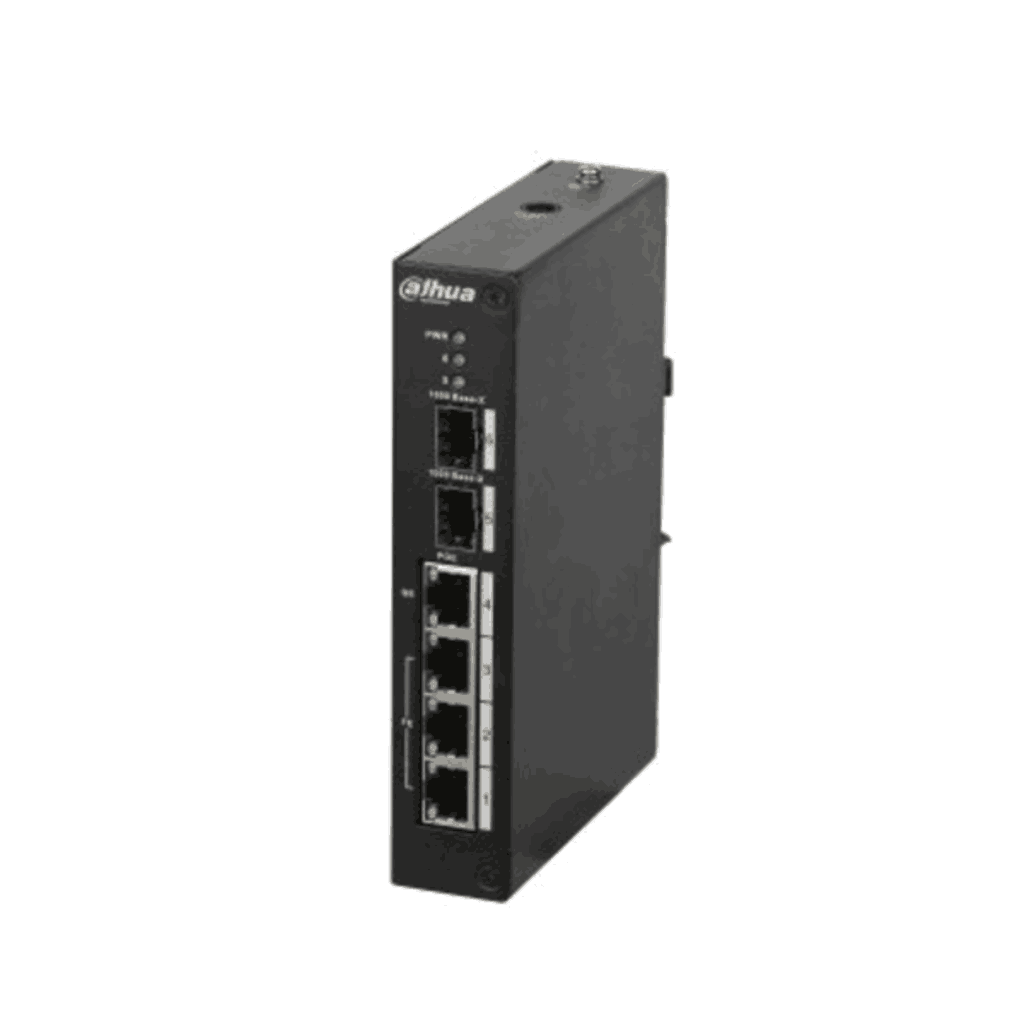

Dahua 4-Port PoE Managed Switch 96 W PFS4206-4P-96
Dahua 4-Port PoE Managed Switch 96 W PFS4206-4P-96
Couldn't load pickup availability
Product Description
-
Two-layer managed PoE switch
-
MAC auto study and aging, MAC address list capacity is 8K
-
Support private fast ring network, recovery time <=50ms
-
Support IEEE802.3af, IEEE802.3at, Hi-PoE standard
-
Industrial wide temperature design
-
PoE Management
Product Specification
|
Brand |
Dahua |
|
Product Type |
PoE Switch |
|
Model |
DH-PFS4206-4P-96 |
|
Ethernet Port |
2*1000 Base-X(SFP),1*10/100/1000 Base-T(Hi-PoE/PoE+/PoE) ,3*10/100 Base-T (PoE+/PoE) |
|
PoE Power Consumption |
Port1, 2, 3 ≤30W ,Port4≤60W ,Total≤96W |
|
PoE Protocol |
PoE(802.3af), PoE+(802.3at), Hi-PoE |
|
Switching Capacity |
6.8Gbps |
|
Packet Forwarding Rate |
4.91Mpps |
|
Packet Buffer Memory |
1Mb |
|
Power |
DC48V~57V |
|
Lightning Protection |
Common Mode 4KV ,Differential Mode 2KV |
|
Working Temperature |
-30°C~65°C |
|
Weight |
480g |
|
Dimension(W×D×H) |
150mm×100mm×30mm |
