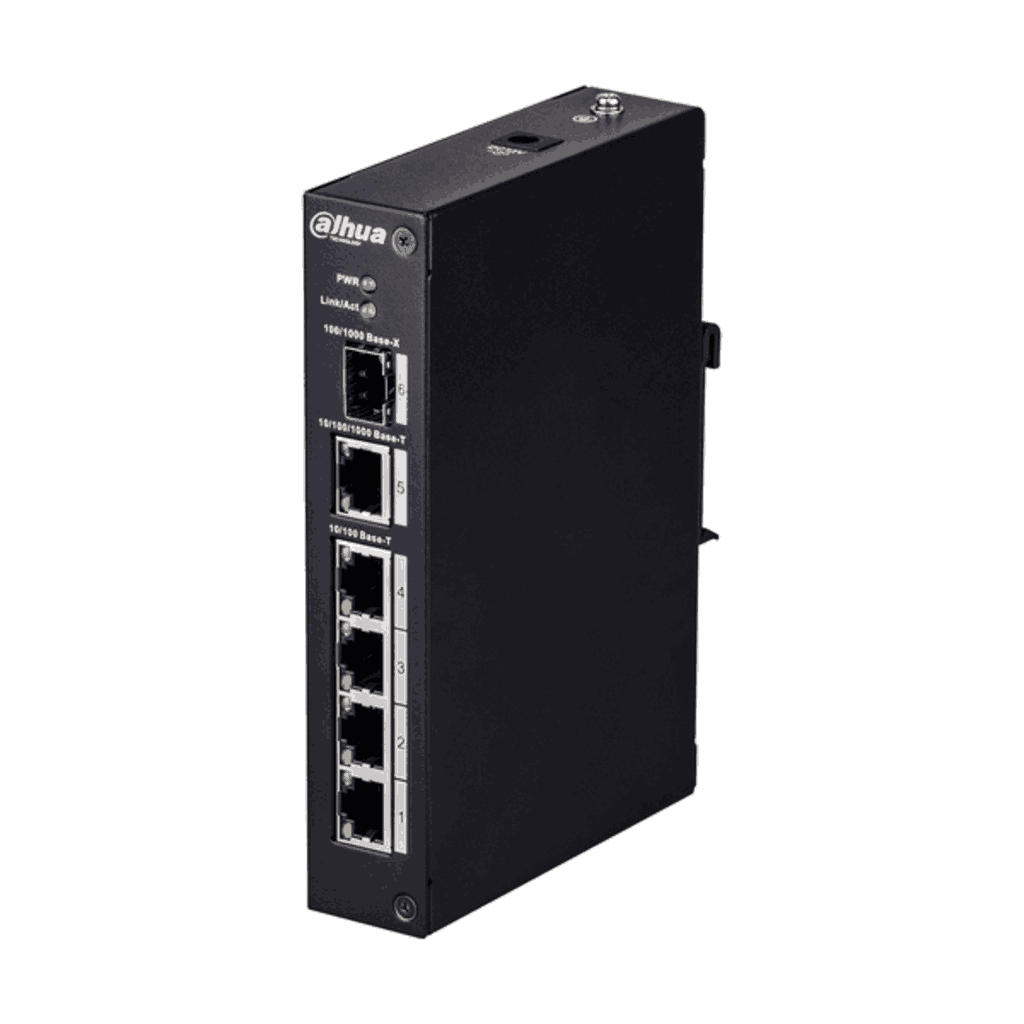

Dahua 4-Port ndustrial Gigabit PoE Switch DH-PFS3106-4GT-DP

Dahua 4-Port ndustrial Gigabit PoE Switch DH-PFS3106-4GT-DP

Rs. 8,530.00
Rs. 11,700.00 Rs. 8,530.00
Sale Sold out
Taxes included.

Product Description

  • High EMC protection and lightning protection design

  • Non-blocking video transmission

  • 45V~57V DC wide voltage design

  • IP40 full metal enclosure, fully-sealed and dustproof design

  • -30°C~+85°C wide working temperature design

  • Lightning protection up to level 4

Product Specification

Brand

Dahua

Product Type

PoE Switch

Model

DH-PFS3106-4GT-DP

Ethernet Port

4*10/100/1000 Base-T (PoE power supply),1*10/100/1000 Base-T,1*1000 Base-X

PoE Power Consumption

Each port ≤30W, Total≤100W

PoE Protocol

IEEE802.3af, IEEE802.3at

Switching Capacity

12Gbps

Packet Forwarding Rate

8.93Mpps

Packet Buffer Memory

1M

MAC Table Size

4K

Flow Control

Enable by default

Application Humidity

5%~95%

Power

DC45V~57V

Lightning Protection

IEC61000-4-2: ±8KV (contact), ±15KV (air),IEC61000-4-4 (EFT): Power Port: ±4KV; Data Port: ±2KV,IEC61000-4-5 (Surge): Power Port: ±2KV/DM, ±4KV/CM

Working Temperature

-30°C~+85°C

Weight

≤ 0.5kg

Dimension(W×D×H)

30mm x 135mm x 90mm
